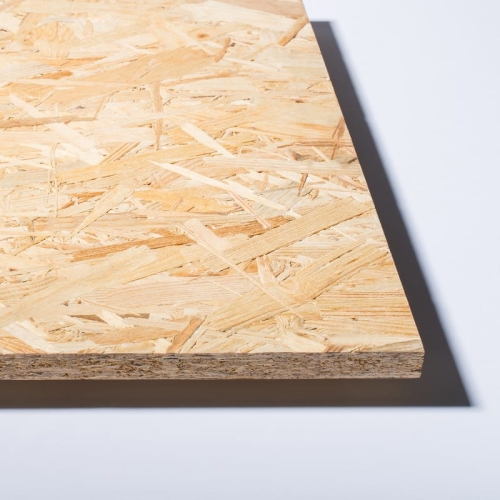

OSB3 board 22 mm / 2500x1250 / 3.125 m2, 42/44 / pallet

Wróć do kategorii: Construction panels and OSB
Producer: Sonae
Product code: 11100
Kod EAN: 5902115300165
Files to download

Oriented Strand Board is an engineered wood-based panel consisting of strands of wood which are bonded together with a synthetic resin; the strands are pressed together in layers.

Possible delivery options
Odbiór własny Szczecin
Odbiór własny Bydgoszcz
Wróć do kategorii: Construction panels and OSB
Net price: $22.13 /piece
Price: $27.22 with VAT 27.22
  ( 1 = $8.71 )
  ( 1 = $7.08 )
Storage: 239 piece
Czas realizacji
Yes
Określ ilość:
quantity piece
Add to clipboard
Dobierz akcesoria
Any questions?
Ask an expert

Description

Technical data

Supplier: KRONOSPAN
Supplier's index: 42151
Thickness: 22 mm
Color: Yellow
Quantity per Pallet: 46 pcs.
Reaction to fire: D-s1, d0
Package: 3.125 m2
Weight: 38.09 kg
Width: 1.25 m
Length: 2.50 m

 < / p>

< p style = "text-align: center;">

OSB (Oriented Strand Board) is a wood-based panel consisting of the strands of wood, which are bonded together with the synthetic resin, are pressed together in layers. In the outer plies the strands are generally oriented longitudinally in line with the length of the panel, while in the middle plies the strands are generally in the transverse direction.

Composition:

Wood species used in the production of OSB include both softwood (spruce, pine) and some hardwoods. The wood strands are cut tangentially from stripped logs that are held longitudinally against the rotating knives. The web of strands produced is typically about 75 mm wide and will unfold during handling to form individual strands which are typically 100 mm long along the grain and from 5 to 50 mm along the grain.


After drying these strands are sprayed with a synthetic resin binder. Typically used types of resins include phenolic formaldehyde (PF), melamine fortified formaldehyde (MUF) or isocyanate (PMDI), all of which are moisture resistant binders. It is common in Europe to use a combination of binders, typically PMDI would be used in the core and MUF in the face layers, and this has the advantage of reducing press cycles while giving a clear appearance to the panel surface.

< p>

Appearance:

OSB is easily identified by its relatively large and long strands of wood. The orientation of the surface bands is not always visually visible, especially in small cut sections of the panel. The main advantages of OSB lie in its mechanical performance, which is directly related to the geometry of the strands and their orientation in the panel. Although the OSB board consists of relatively large strands of wood, its surface is relatively smooth and can be further improved by sanding without losing the aesthetic character that is characteristic of OSB boards.

OSB boards vary in color from light, straw to medium brown depending on the type of wood used, the resin system used and the pressing conditions used. Does not contain knotholes, core voids or points of weakness.

Density, weight and sheet size :

< p>
The density of the panels (and therefore the weight of the panels) varies depending on the product, which is influenced by the wood species and the production process. Typical densities are 600-680 kg / m & amp; sup2. For example, a panel of 2400x1200x12mm weighs about 20kg.


The commonly available panel sizes are 2440 x 1200mm, 2440 x 1220mm and 2500 x 125mm with a thickness ranging from 6mm to 40mm .


Other sizes are available or can be made to order. The panels are produced with both square and grooved (T & amp; G) edges.

Application:

Due to the high mechanical properties and the orientation of the strips in the boards, OSB is particularly suitable for load-bearing applications in construction and is widely used for floor covering, roofing and wall cladding, but there is also a wide range of other applications where OSB can be used as a wood based panel product.


Different grades of product are available for different loading levels and different conditions.

Translations of product names and their descriptions have been translated using Google Translate.
